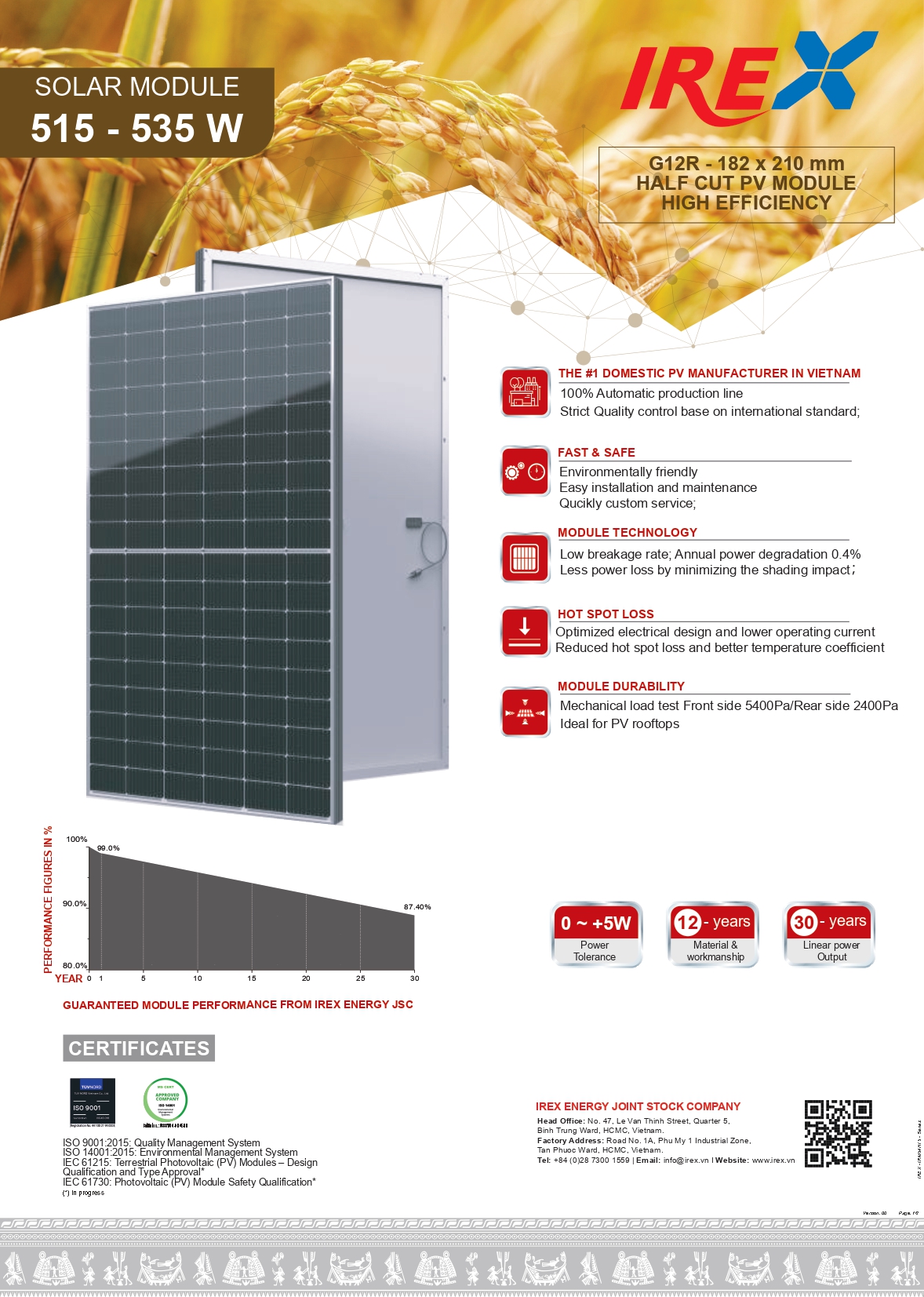

IRM54HT5-515-535
- External Dimensions: 1960 × 1134 × 30 mm
- Weight: 26.6 kg ±3%
- Solar Cells: N-Type TOPCon Mono 105 × 182 mm (108 pcs)
- Glass: 3.2 mm High Transmission, Low Iron, Tempered Glass with Anti-Reflective Coating
- Frame: Anodized aluminium alloy
- Junction Box: IP68, 3 diodes
- Output Cables: 4.0 mm², 300 mm(+) / 200 mm(−)
- Mechanical Load:
-
- Front Side Maximum Static Loading: 5400 Pa
- Rear Side Maximum Static Loading: 2400 Pa
