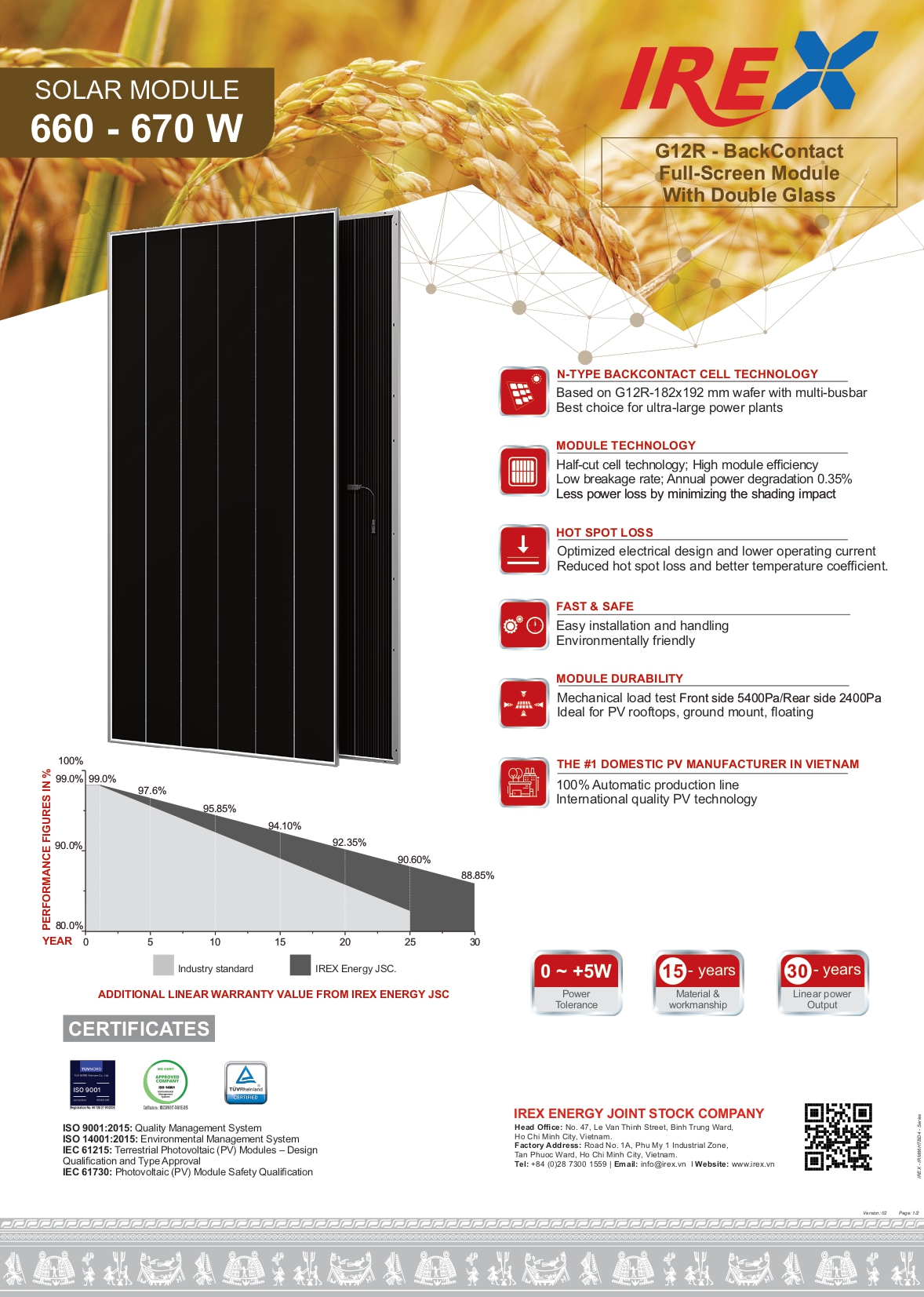

IRM72HXFBD6-660-670
- External Dimensions: 2382 × 1134 × 30 mm
- Weight: 32.1 kg ± 3%
- Solar Cells: N-Type Back Contact 96 × 182 mm (144 pcs)
- Glass: Glass:
- Front: 2.0 mm, AR coating, semi-tempered
- Rear: 2.0 mm, semi-tempered
- Frame: Anodized aluminium alloy
- Junction Box: IP68, 3 diodes
- Output Cables: 4.0 mm², 300 mm(+) / 200 mm(−)
- Mechanical Load:
- Front Side Maximum Static Loading: 5400 Pa
- Rear Side Maximum Static Loading: 2400 Pa
